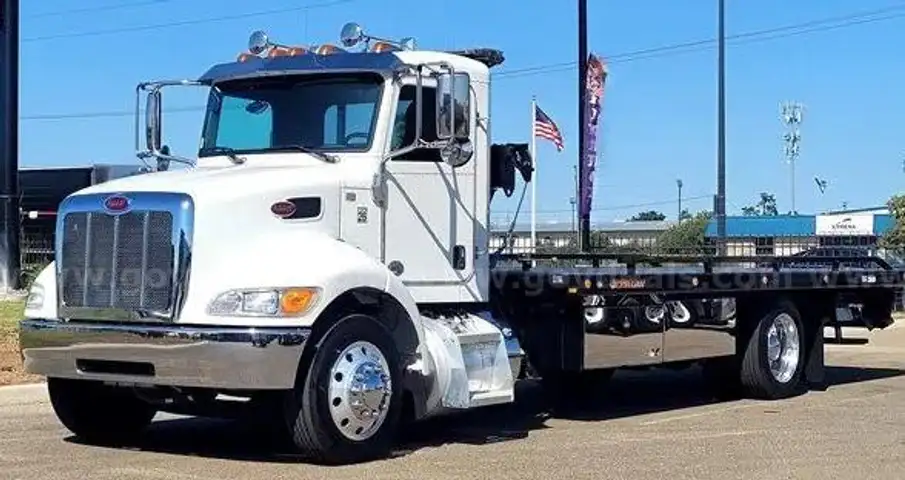

2021 Peterbilt 337, 6.7L L6 DIESEL.

Starts, runs, & operates as designed

Engine Model: PX-6/PX-7

Automatic Transmission

GVWR: Class 6: 19,501 - 26,000 lb (8,845 - 11,794 kg)

Jerr-Dan SRS (Side Recovery System) Spec Sheet

STANDARD EQUIPMENT:
●10,000 lb high speed planetary winch
●Winch cable tensioner
●Access winch remote free spool release (manual or air)
●Independent hydraulic stabilizer legs
◦Fits varying frame heights from 32” to 42”
●Quick switch pivoting recovery boom (no assembly required)
◦Recover from either side of the vehicle. A simple pin release allows the patented boom to swing from one side to the other
●Twelve tie-back locations
●Snatch block and galvanized shackle
●Independent hide-away flip down claw/spade with dual stabilizing feature
◦Allows for greater strength and stability. Also alleviates need for wood blocks to prevent road damage or bolt-on attachments to break through ice
●Wireless remote control system for all functions (with manual overrides)
●Custom Hydraulic Manifold for simpler and more efficient hydraulic hose routing
●Fully Adjustable Light Pylon
◦Comes standard and can adjusts to all popular chassis cab heights
●Mechanical/hydraulic locking features on all functions

SPECIFICATIONS:
●Structural Capacity: 10,000 lbs
●Winch Capacity: SRS-10 10,000 lbs
●Wire Rope: SRS-10 7/16” dia. x 75 ft
●Weight (Complete Unit): 1,265 lbs
●Can pull rated winch capacity in any direction, with recovery boom in either stowed location

Standard Duty 21' x 102 6-Ton XLP Carrier Spec Sheet
Features:
●Load angles as low as *7.5°
●Lowest maintenance carrier in the world including No-Lube™ technology for slide pads and pivot joints
●Industry’s strongest aluminum bed featuring exclusive, Patented Galvanized Steel Beam Technology™
Technology
●On-board hydraulic pressure gauges assists with troubleshooting
●Single sheet decking on conventional & dual angle steel deck reduces weld joints & potential corrosion points
●Combination winch cable guide roller/tensioner plate
●Manual or air-controlled winch-free spool
●Dual manual free spool
●Corrosion-resistant lightened dual control stations
●Federal Motor Carrier Safety Administration DOT 393 compliant crash protection headboard
●Most advanced, high performance hose/wire cable-tracking system in the industry
●Highest standard DOT reflectivity and lighting levels in the industry
●12 key slots standard
◦2 Front of deck, 6 Mid-Deck, 4 Rear of deck

Toolboxes w/fender baskets on each side for additional storage, winch remote for SRS. Toolbox accessories included.

Tires great, hold air

Air brakes & suspension
