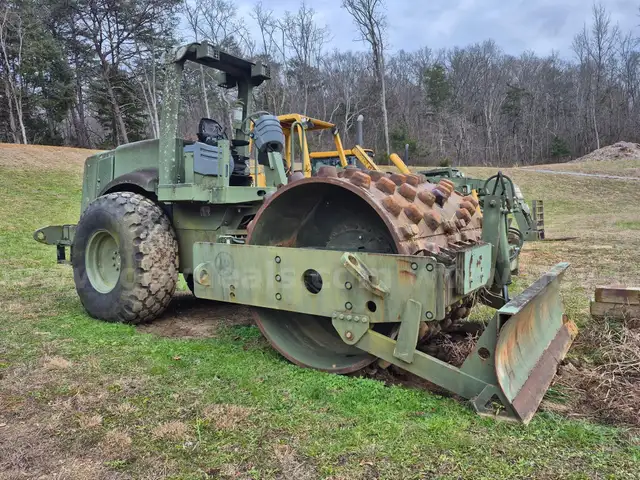

UP FOR AUCTION IS A 2001 CATERPILLAR MODEL CS-563D ROLLER COMPACTOR. THIS PIECE OF EQUIPMENT STARTS, RUNS AND MOVES UNDER IT'S OWN POWER. WE COULD NOT GET THE VIBRATING DRUM FUNCTION TO WORK. THE ENGINE SOUNDS GOOD WITH NO NOTICEABLE ODD NOISES. THE TRANSMISSION SHIFTS SMOOTHLY AND THE MACHINE MOVES FORWARD AND REVERSE. WE ACQUIRED THIS PIECE OF EQUIPMENT IN JUNE OF 2018 AND THE HOUR METER SHOWED 223 HOURS. IT HAS BEEN USED VERY LITTLE SINCE THEN. THE DIGITAL DISPLAY FOR THE HOUR METER IS NOT CURRENTLY READABLE. THE SEAT CUSHIONS NEED TO BE REPLACED. THERE IS A HYDRAULIC LEAK AT THE FRONT CYLINDER. OVERALL THIS MACHINE APPEARS TO BE IN PRETTY GOOD CONDITION. AS WITH ANY PIECE OF EQUIPMENT, THERE COULD BE UNKNOWN REPAIRS THAT MIGHT NEED TO BE MADE TO MAKE IT FULLY FUNCTIONAL. YOU ARE PURCHASING THIS ITEM AS IS WITH NO WARRANTY OR GUARANTY OF ANY KIND. ALL BIDDERS ARE ENCOURAGED TO INSPECT ITEMS IN PERSON PRIOR TO BIDDING. THE FOLLOWING INFORMATION ON THIS PIECE OF EQUIPMENT WAS FOUND ONLINE:

The Caterpillar CS563D is a powerful single-drum vibratory soil compactor featuring a Cat 3116T turbocharged diesel engine (around 145-150 HP), hydrostatic drive, and dual amplitude vibration for versatility, with key specs including an 84-inch drum width, operating weights near 24,000 lbs, and high centrifugal forces (up to 50,000 lbs) for deep, efficient soil compaction in a robust design built for demanding conditions, notes RitchieSpecs, bidadoo, and Ironmartonline.
Engine & Performance
Engine: Cat 3116T Turbocharged Diesel.
Gross Power: Around 145-150 horsepower.
Transmission: Hydrostatic with two-speed travel.
Max Speed: Up to 8 mph.
Dimensions & Weight
Operating Weight: Approx. 24,000 - 24,500 lbs (11,000 - 11,100 kg).
Drum Width: 84 inches (2134 mm).
Drum Diameter: Approx. 60 inches (1524 mm).
Overall Length: Around 17.26 ft (5.26 m).
Vibration System
Amplitude: Dual (High: ~1.70 mm, Low: ~0.85 mm).
Frequency: Variable, up to 30 Hz (1800 vpm).
Centrifugal Force: Up to 60,000 lbs (266 kN) in high mode.
