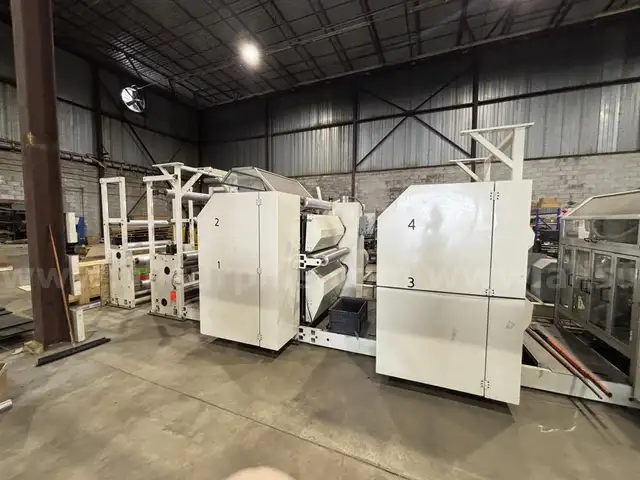

2010 RG Engineering 4 Station Servo Driven Cantilever Flexo Press. Never in production - installed in 2010 but never ran. Equipment was removed in Aug 2020 & shipped to SC where it has remained in storage. The press is not assembled, so cannot be operated or demoed. Dimensions: L34.00 X W12.00 X H12.00 Feet . Weight: 30,000lbs

eCantilever Press Line Specifications:
Maximum Web width: 34 inches
Maximum Printing Width: 32 inches
Colors: Eight Colors in 4-frames
Configuration: Cantilever Sleeve System
Print Station Power: Servo Direct Drive
Rated Maximum Speed: 500 fpm (see note “a”)
Rated Registration: ±0.005”
Paper Substrates: 12 to 24 Pt Board
Plate Cylinder Repeat Range: 12 to 28 inches Sleeve System
Anilox Roller Specifications: Eight Sleeves Engraved Up To 400 Lines
Plate Cylinder Specifications: Eight Sleeves Included, (Customer Specified)

Dryer Specifications:
Drying:
Tower One: Three Systems of IR, Air Knifes, Exhaust
Tower Two: Three Systems of IR, Air Knifes, Exhaust
Tower Three: Three Systems of IR, Air Knifes, Exhaust
Tower Four: Three Systems of IR, Air Knifes, Exhaust

Note "a": Printing speeds up to 500 fpm can be achieved on varied substrates depending on ink coverage, paper, printing plate layout, dryers, and type of ink.

Press Specifications
1. All rollers are statically & dynamically balanced.
2. Idler rollers are mounted on dead shafts w/pre-lubricated ball bearings.
3. Idlers are used in critical areas to reduce wrinkling of substrate.
4. The anilox roller is directly driven w/a servo for accurate control.
5. The plate cylinder is directly driven w/a servo for accurate register control.
6. The plate cylinder is cantilever in design to allow for quick printing sleeve change over.
7. Anilox rollers are ceramic coated & laser engraved to customer specification.
8. One base plate cylinder is supplied w/each print station & designed to accept sleeve system.
9. Plate cylinder to anilox roller adjustment is through the touch screen.
10. Electronic side lay operating switches on the main control panel provide for lateral registration adjustment of the printing stations.
11. A pneumatically controlled & adjusted enclosed fountain/doctor blade system is included w/each print station. The system pivots on three inch structural tubing mounted directly in the frames for stability at high speeds.
12. Impression cylinders are hard chrome plated & mounted on eccentric assemblies for on/off operation.
13. Each station is equipped w/Register correction through 360-degree rotation of a plate cylinder. The cylinders are rotated electronically through the touch screen located in the main control panel.

NOTE: This lot is offered for sale to buyers located in the USA only. Any bid from entities outside of the USA will not be accepted. The sale of this lot is subject to additional terms and conditions of the seller, which can be found in the attached PDF. Removal by appointment only. Buyer is responsible for all handling, loading, packaging and shipping costs. If buyer is using 3rd party shipper they need to make sure they have the proper agent release forms or they will be turned away. Buyer must also follow any safety requirements while on site and provide Insurance Liability Form upon request.

Condition: Very Good

Custom Asset Number: 440E114232001
