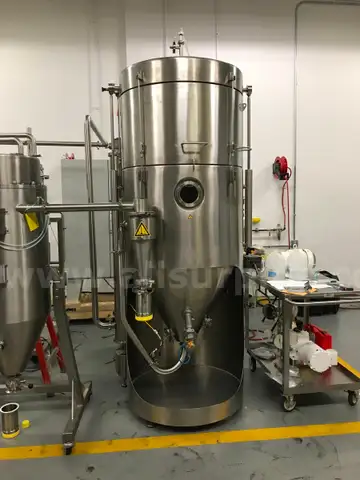

GEA Mobile Minor Spray Dryer
The Mobile Minor Spray Dryer transforms a feed liquid into a dry powder in a continuous one step operation. The drying operation includes three stages:
a) Atomization of the feed liquid into a spray by using a two-fluid nozzle.
b) Contact of the atomized droplets with hot gas to promote evaporation. The hot gas enters the chamber through a proprietary ceiling gas disperser.
c) Separation of dried product from the gas in a cyclone and/or exhaust filter.
Key Specifications:
Nominal Process Gas Flow: 100 kg/hr at 200 °C
Water Evaporation Capacity: 0.5 – 8 kg/hr
Typical Particle Size Range: 5 – 80 μm
Maximum Inlet Temperature: 200 °C
Maximum Outlet Temperature: 120 °C
Atomization: Two fluid nozzle (co current)
Heating: Electrical
Exhaust Handling: Bag filter compatible
Product contact surfaces: AISI 316/316L stainless steel
Non contact surfaces: AISI 304 stainless steel
FDA compliant silicone/PTFE elastomers
Hygienic interior finishes (Ra ≤ 0.8 μm)
Power: 480 V, 3 phase, 40 A
Clean compressed air required
Nitrogen supply for drying gas
Cooling medium for condenser (–20 °F)
Condition: Good
