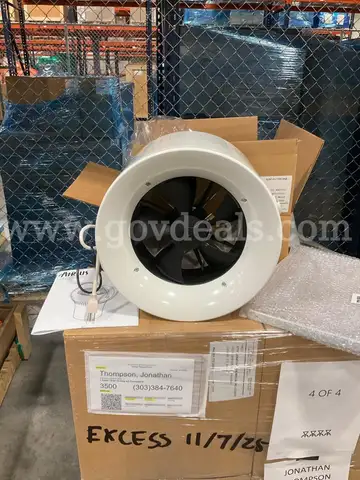

R 20 EC STD 100 130 W CON
29328-40
New/Unused
New still in the box / Sold as is / Have not been used / No warranty
1 lot of 28 one pallet
General Product Details
• Model: R 20 EC STD 100 130 W CON
(R = Retail Series, 20 = 20 cm impeller, EC = Electrically Commutated motor, STD = Standard nozzle, 100–130 V, White color)
________________________________________
Electrical Characteristics
• Voltage: 100–130 VAC, 50/60 Hz
• Current: ~0.46 A
• Power Consumption: ~31 W
• Speed (Max): ~1,640 RPM
________________________________________
Airflow & Coverage
• Max Airflow: ~620 CFM (≈ 1,053 m³/h)
• Recommended Ceiling Height: Up to 20 ft (≈ 6 m)
• Coverage Area: ~1,200 ft² (≈ 111 m²) at heating-level
________________________________________
Acoustic Performance
• Sound Power Level: ~62 dB(A)
• Sound Pressure Level: ~44/42/40 dB(A) (at 5 ft / 10 ft / 15 ft)
________________________________________
Physical & Environmental Specs
• Weight: ~6 lb (≈ 2.7 kg)
• Dimensions: Ø 14.4″ (366 mm); Total Height ~16″ (406 mm); Rim Height ~10″ (254 mm)
• Motor Efficiency: ~92% (ebm papst EC motor)
• Operating Temperature Range: –30 °C to +50 °C (–22 °F to +122 °F)
• Ingress Protection: IP54 rated (standard nozzle)
• Housing Material: PC/ABS resin, UL94 5VA flame
________________________________________
Accessories & Options
• Speed Control: 0–10 VDC (e.g., POT 1 potentiometer)
• Control Integration: PearLink Wi Fi or BACnet modules
• Safety Cable: 6 ft steel tether included
How They Work
• These fans gently move air vertically, pulling warmer air from the ceiling down and mixing it with cooler air below.
• This equalizes the temperature throughout the space without creating drafts.
