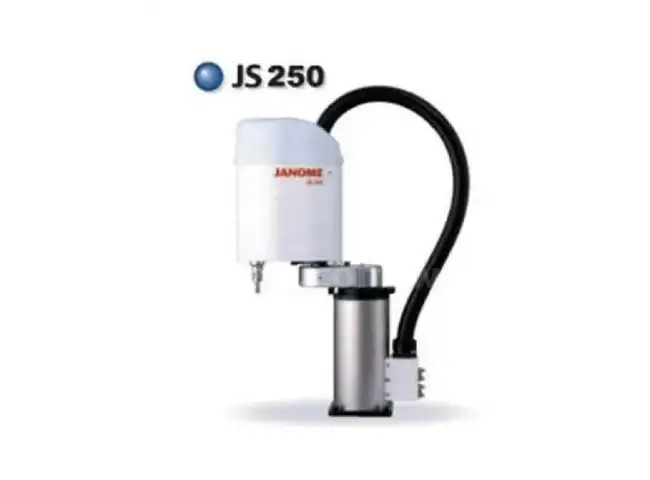

SCARA ROBOT- JANOME JAPAN CO.LTD MODEL JS-250 USED
Features:
The series JS SCARA robots are equipped with servo motors and can be applied in many tasks.
Accumulating many years of experience and knowledge gained, the Janome Robots developed this series of high-tech, compact and economical, providing an efficient and low cost in any production line.

condition: like new
make / manufacturer: JANOME JAPAN CO.LTD
model name / number: JS-250

Key features:
Movement stable mechanism by dual-axis
Arm high stiffness
Large work area in elliptical
Moment of inertia axis high R for a wide selection of tools
Cables and connections easy to use
Large memory capacity (up to 30000 points)
Up to 255 programs storable

Arm Length: J1: 100mm; J2: 150mm; J1 J2: 250mm
Load Capacity: 4 kg
Moment of Inertia: 0.1 kg.m2
Work Area: J1: -130 º; J2: -145 º, Z: 150mm, R: ± 360 º
Speed: J1: 4200 (3000) mm / s Z: 1400 mm / s £: 1750 ° / s
Repeatability: X, Y: ± 0.01 mm, Z: -0.01 mm A: -0.01 °
Memory: 255 programs or 30,000 points
Drive: servomotor
Operating System: point to point (PTP) or continuous (CP)
Interpolation: Simultaneous Linear XYZ (R)-3D (CP)
Schedule: Manual input (MDI), remote or direct
Signals input / output (I / O): 16 input signals and 16 output
External Interface: RS232C (3), 37 inputs, 40 outputs (six relay contacts)
220V Power: 180-250 VAC 1050 VA consumption
Plugs tools: 4 sockets Pneumatic 4mm, 14 for signal
Working temperature: 0-40 º C
Relative Humidity: 20 - 90% noncondensing
Weight: 27kg
