Brand: HP

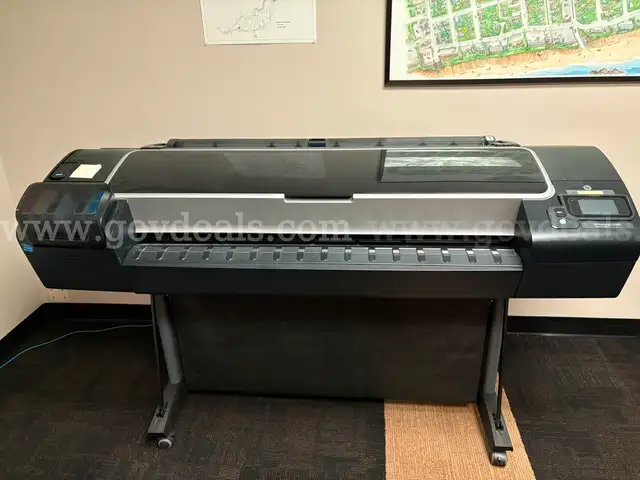

Model: DesignJet Z5400

Product Overview
Be ready—the first multi-roll printer for graphics that can produce durable prints. Speed up your workflow with two rolls and smart switching. Cut your turnaround times and deliver high-quality prints with easy operation and proven HP reliability.
Increasing uptime—two rolls help easily create in-house applications on demand from any type of file—cutting turnaround times and expanding offerings.
Cut delivery times—the first multi-roll printer for graphics lets you create a wide range of high-quality, long-lasting prints in black-and-white and color. Increase uptime and use ink efficiently. Enjoy simple operation with proven HP reliability.
FCC Class A emissions device for use in commercial environments, not residential environments[5]

Functions
Print
Print speed, maximum
570 ft²/hr
Resolution (color)
Up to 2400 x 1200 optimized dpi
Print Technology
HP Thermal Inkjet
Number of print cartridges
6 (cyan, magenta, yellow, light gray, matte black, photo black)
Compatible ink types
Pigment-based
Print languages
Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG, CALS G4, HP PCL 3 GUI, HP-GL/2, and HP-RTL (HP-GL/2 and HP-RTL only available via HP Instant Printing PRO or the HP Embedded Web Server)
Connectivity, standard
Gigabit Ethernet (1000Base-T); Hi-Speed USB 2.0 certified; EIO Jetdirect accessory slot
Connectivity, optional
HP Jetdirect EIO print servers
Network ready
Standard
Memory, standard
64 GB (virtual)
Memory, maximum
64 GB (virtual)
Hard disk
Standard, 320 GB
Non-printable area (cut-sheet)
0.2 x 0.67 x 0.2 x 0.2 in
Guaranteed minimum line width
0.0031 in (ISO/IEC 13660:2001(E))
Line accuracy
±0.1%
Color stability
< 1 dE2000 in less than 5 minutes
Print repeatability
Average < 0.5 dE2000, 95% of colors < 1.4 dE2000
Maximum optical density (black)
4 L* min/2.5 D
Finished output handling
Two automatic roll feeds; smart roll-switching; sheet feed; media output bin; automatic cutter (cuts all media except canvas and banners)
Media sizes supported
A, B, C, D, E
Media sizes supported
A4; A3; A2; A1; A0
Media sizes, custom
8.3 x 11 to 44 x 66 in
Media types
Photographic, proofing, fine art printing material, self-adhesive, banner and sign, bond and coated, backlit, fabric/textile
Media sizes, standard
8.3 to 44-in wide sheets; 11 to 44-in rolls
Roll maximum output
300 ft (application dependent)
Roll external diameter
5.3 in
Media thickness
Up to 31.5 mil
Power
Input voltage (auto ranging) 100-240 V (±10%), 50/60 Hz (±3 Hz), 2 A max
Power consumption
< 120 watts (printing); < 27 watts (ready); < 5 watts (< 22 watts with embedded Digital Front End) (sleep); 0.1 watts (off)
Operating temperature range
41 to 104ºF
FCC
FCC Class A emissions - for use in commercial environments, not residential environments
Warranty
One-year limited hardware warranty
Software included
Printer driver, HP Instant Printing PRO for Windows, HP Printer Utility including HP Color Center, HP DesignJet Excel Accounting Tool
Dimensions (W X D X H)
69.7 x 28.4 x 41.3 in
Weight
189 lb
Package weight
253.5 lb
What's in the box
HP Designjet Z5400 PostScript Printer; printheads; introductory ink cartridges; printer stand and media bin; spindles; quick reference guide; setup poster; start-up software; power cord
